C4 Model#

The C4 model is created using Structurizr and stored in the c4 folder. The Structurizr DSL file can be found at: c4/workspace.dsl

Below are the images generated by Structurizr on 2025-06-23:

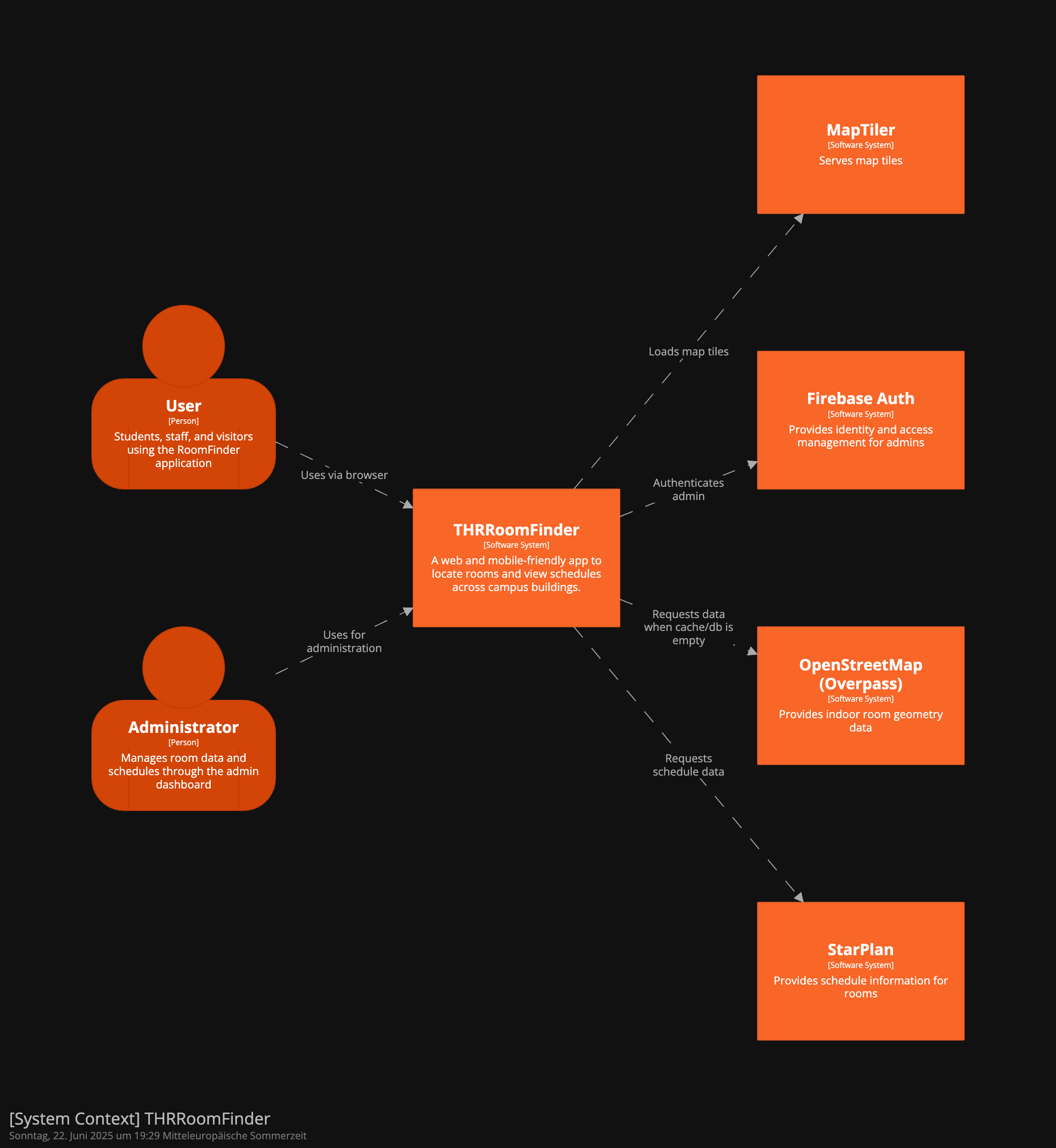

System View:#

System View

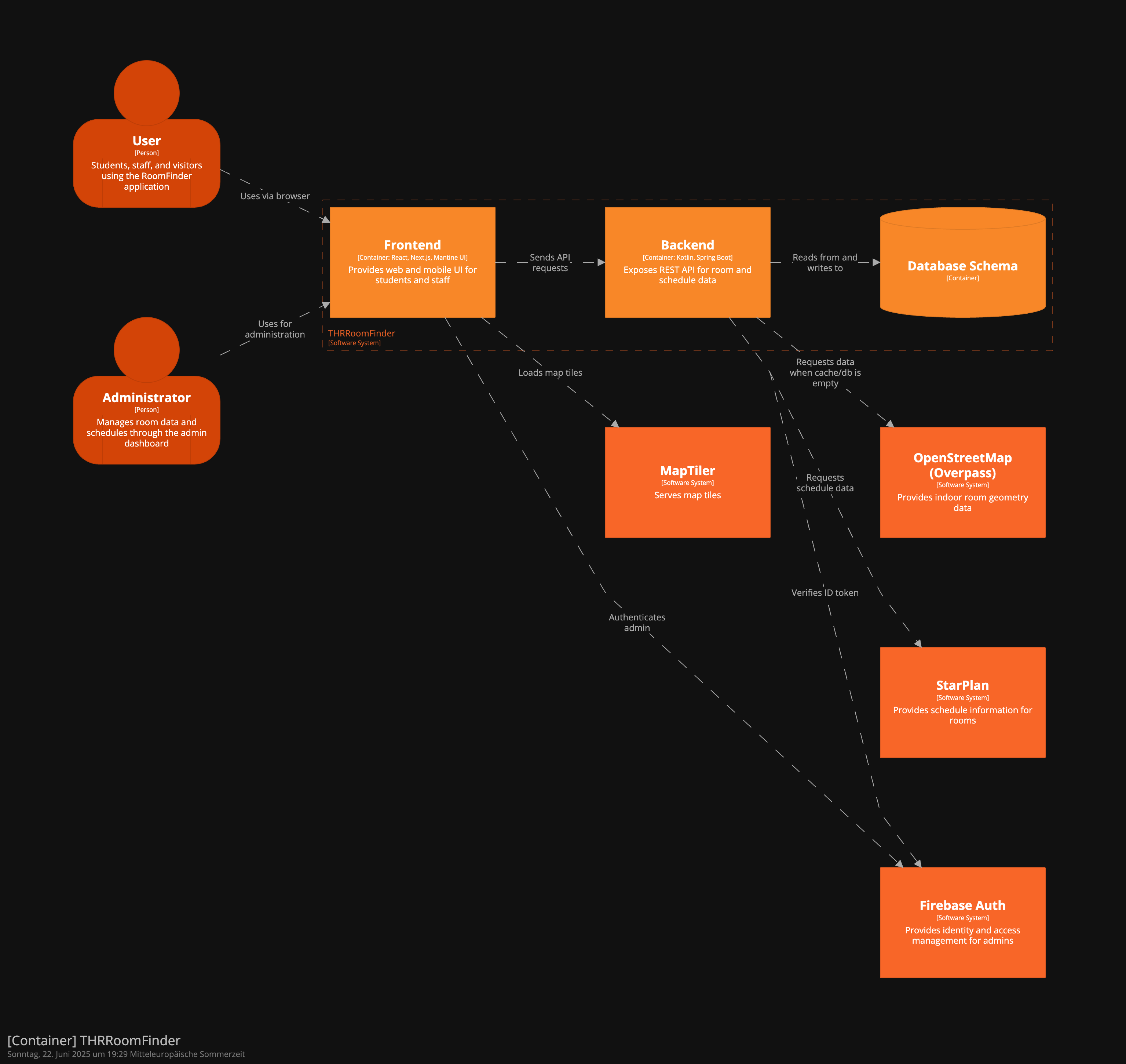

Container View#

Container View

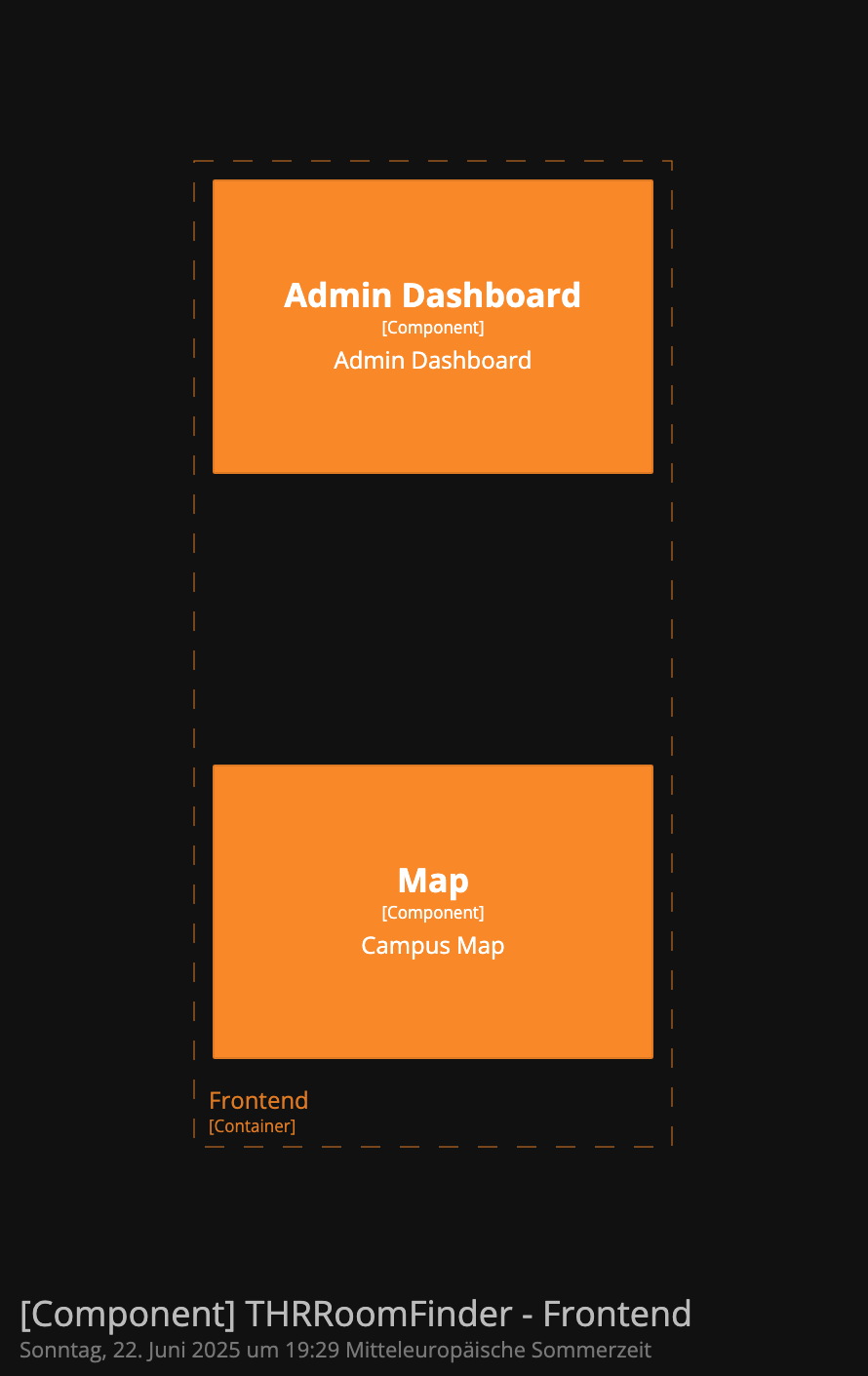

Frontend Component View:#

Frontend Component View

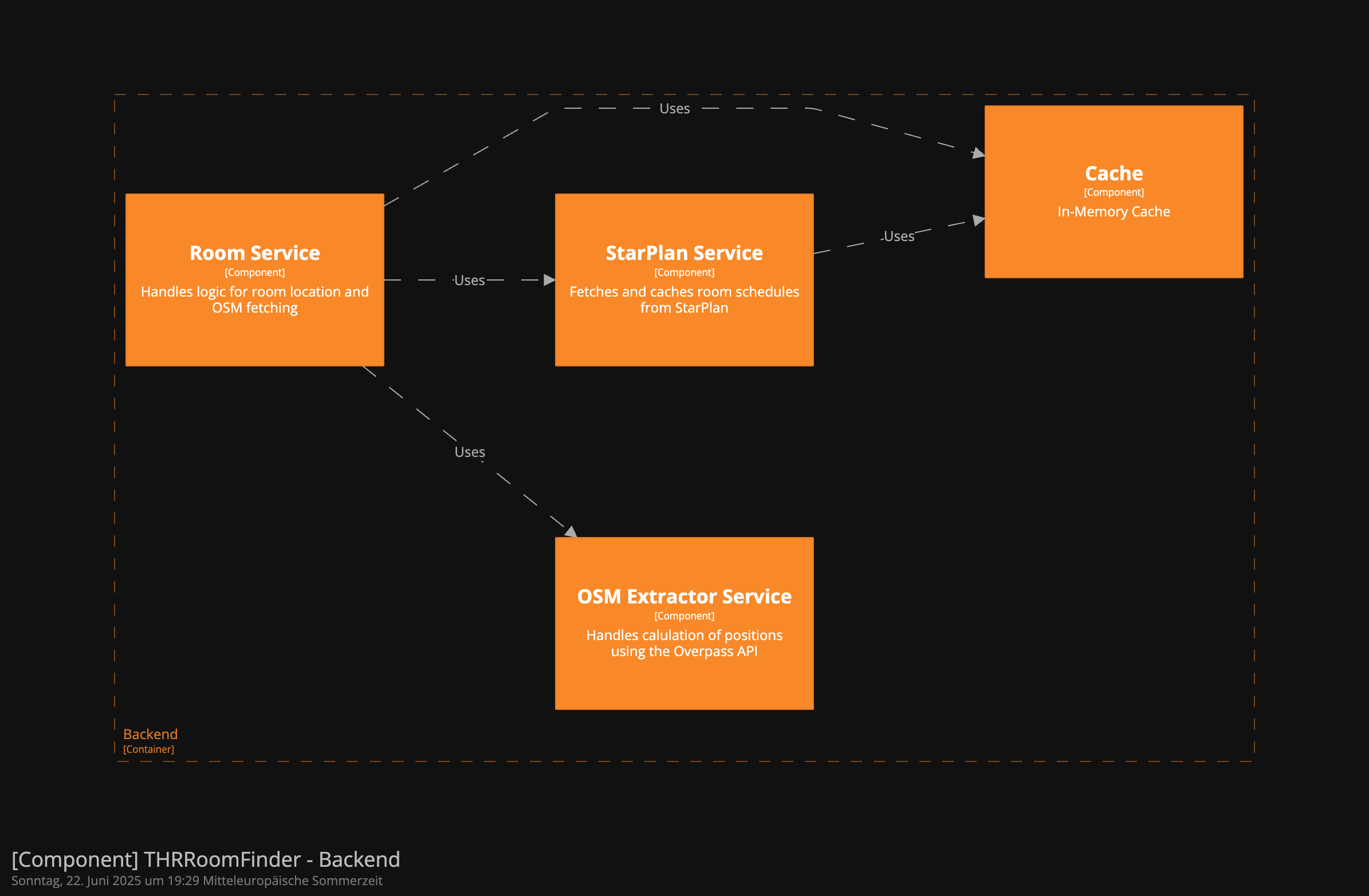

Backend Component View:#

Backend Component View
